Thermal Grease

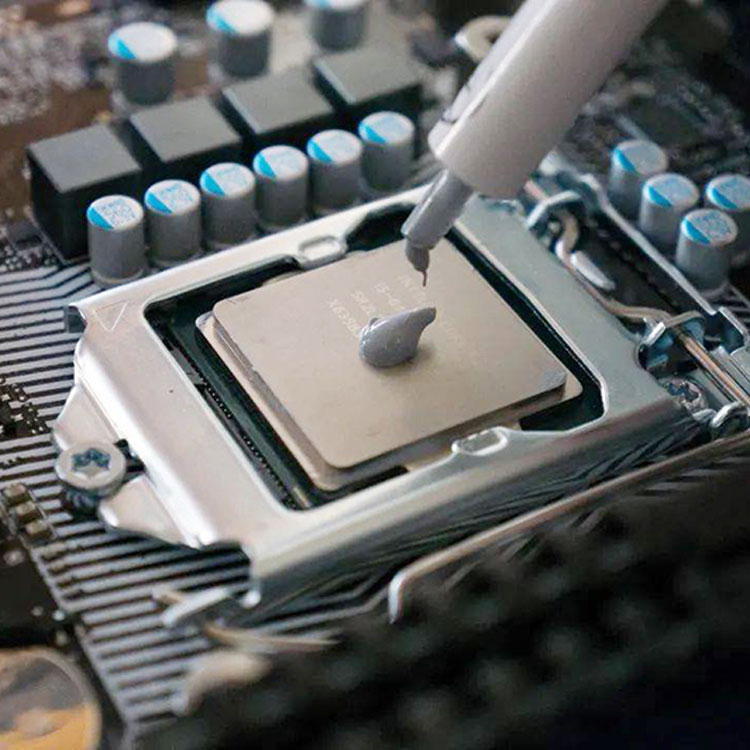

Guanxu® GXG series thermal grease is a thermally conductive compound designed for use between high-power electronic components and heat sinks. Its excellent wetting properties allow it to rapidly fill microscopic voids at the interface, significantly reducing interfacial thermal resistance. This enables fast and efficient cooling of electronic components, thereby extending their service life and enhancing reliability.

Key Features

High thermal conductivity and low thermal resistance

Excellent high-temperature resistance

Good thixotropy for easy application

Low filler settling and superior chemical and mechanical stability

Suitable for screen printing, manual spreading, and other application methods

Market Applications

Telecommunications Equipment
Automotive Components
Consumer Electronics
LED Lighting
Security & Surveillance Devices

Key Applications

Thermal interface material for heat dissipation between electronic components and heat sinks in the above industries.

Product Models

Typical Property	Test Method	Model
Typical Property	Test Method	GXG-2W-LT	GXG-3.5W-LT	GXG-5W-LC
Thermal Conductivity (W/m·K)	ASTM D5470	2	3.5	5
Thermal Resistance (°C·cm²/W) @50 psi	ASTM D5470	0.026	0.018	0.011
Color	Visual Inspection	White	White	Gray
Density (g/cm³)	ASTM D792	3.1	3.2	3.4
Dielectric Strength (kV/mm)	ASTM D149	9	5	5
Low-Temperature Resistance (°C)	--	-100	-100	-40~150
