Absorber Sheets

High-Loss, Broadband, Customizable, Soft & Ultra-Thin

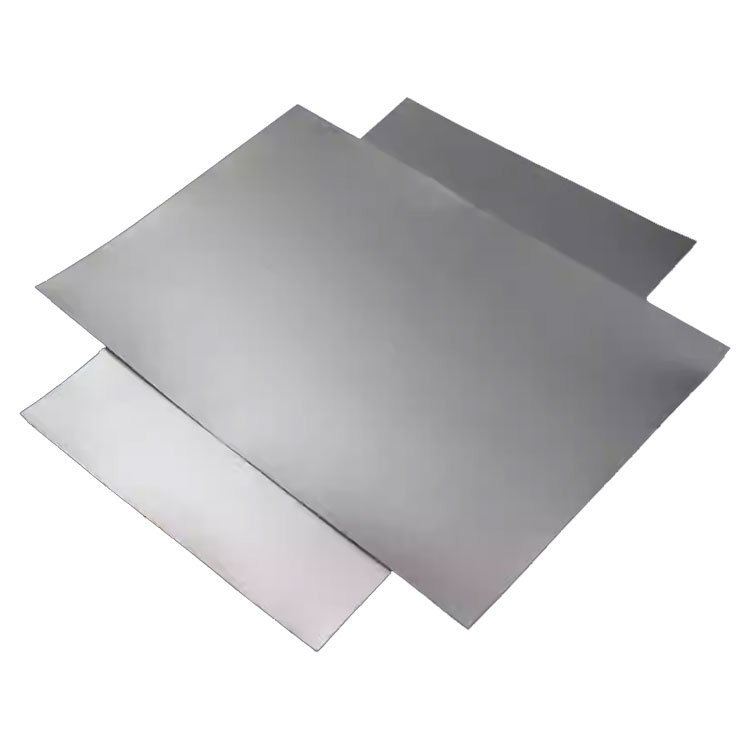

Guanxu® GXR-series absorber sheets are thin, flexible, magnetic silicone rubber-based microwave absorbing materials, engineered using proprietary microwave-absorbing fillers and silicone resin. They effectively absorb electromagnetic waves across a broad frequency range of 300 MHz to 100 GHz, making them suitable for demanding applications such as aerospace—thanks to their low outgassing properties, high-altitude compatibility, and excellent high-temperature resistance.

Key Features

Ultra-broadband performance: 300 MHz – 100 GHz

High-loss, non-conductive silicone rubber sheet

Flame retardant with excellent thermal stability

Flexible, lightweight, ultra-thin, easy to cut, process, and install

Market Applications

Commercial Communications: Antennas, optical modules, routers
Millimeter-Wave Applications: 5G communications, millimeter-wave radar
Industrial Electronics: Automotive electronics, drones, etc.
Instrumentation & Measurement: Power amplifiers, filters, test systems
Security & Defense: Radar systems, etc.

Key Applications

Reduce Free-Space Wave Reflection: When applied to metal surfaces, absorbing materials significantly minimize electromagnetic wave reflections caused by metallic objects or structures.
Suppress Cavity Resonance: When adhered inside conductive enclosures, absorbers effectively dampen higher-order harmonic resonances, ensuring stable circuit operation.
Attenuate Surface Traveling Waves: Absorbers efficiently absorb creeping waves propagating along transmission lines (or equivalent structures) and conductive surfaces.
Electromagnetic Field Isolation: Leveraging their high permeability and permittivity, absorbers draw electromagnetic energy into the material, thereby enhancing electromagnetic isolation for sensitive components.

Product Models

Model	1mm Resonance Peak	Attenuation	Hardness (Shore A)	Density (g/cm³)	Operating Frequency Band
Model	1mm Resonance Peak	Attenuation	Hardness (Shore A)	Density (g/cm³)	0.5mm	1mm	2mm
GXR-82	8~10GHz	90 @18GHz	73	4.3	Ku	X	C
GXR-83	22~26GHz	50 @18GHz	45	2.7	U	K	X
GXR-87	10~14GHz	60 @18GHz	65	4.0	X	X	C
GXR-91	5-7GHz	110 @18GHz	85	4.8	Ku	C	S
GXR-11	2-4GHz	120 @18GHz	75	3.4	C	S	L
GXR-T1	1-2.5GHz	150 @8GHz	73	3.7	S	L	P
