Absorbing material

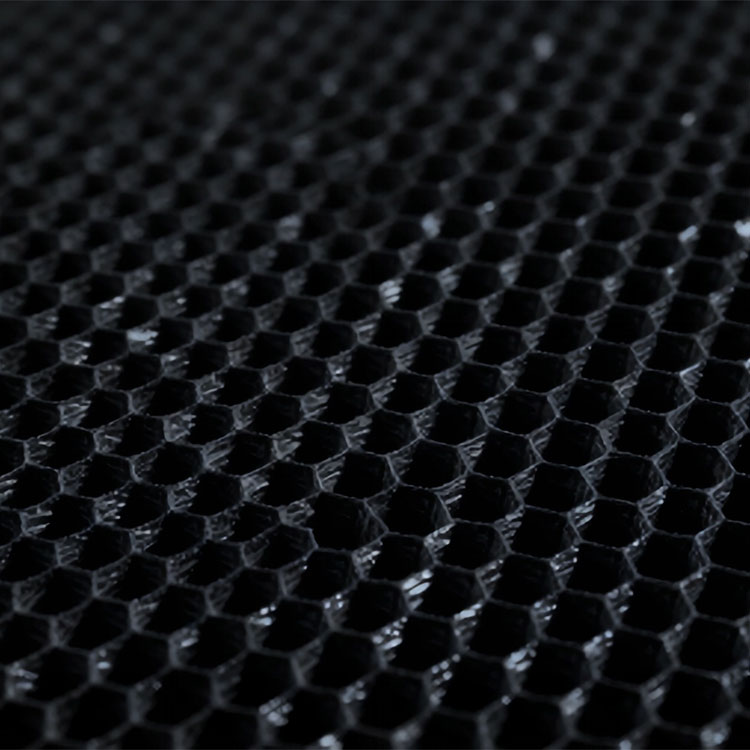

Absorbing Honeycomb
Guanxu® GXY-AC15-P Series is a multifunctional composite material that integrates the structural advantages of a honeycomb core with high-performance electromagnetic wave absorption. Built on an ultra-lightweight honeycomb substrate, it incorporates proprietary microwave-absorbing agents through impregnation, coating, or lamination processes. This enables efficient absorption and attenuation of electromagnetic waves while maintaining excellent mechanical properties, including high strength, high stiffness, and low weight.
The GXY-AC15-P series is widely used in demanding applications such as aerospace, telecommunications, and military stealth systems, where both strict electromagnetic performance and superior structural integrity are required.
Key Features

Lightweight yet high strength-to-weight ratio

Excellent environmental and cleanliness performance (low outgassing, RoHS-compliant options available)

High power-handling capability (suitable for high-power RF/microwave environments)

Broad operating frequency band: Ideal for radomes, UAV structures, satellite components, and EMI-sensitive enclosures where structural and electromagnetic functions must coexist.

Market Applications
Key Applications
Electronics & Telecommunications
Civil Stealth Applications
Security & Defense
Product Models

Selection Table

ItemTypical ValueTest Standard
ColorBlackVisual inspection
Thickness (mm)15±0.5N/A
Operating Temperature (°C)-50-130GB/T 2423.2-2008; GB/T 2423.1-2008
Areal Density(kg/m2)0.9GB/T 6343-2009

Reflectivity of Material (dB)

Frequency (GHz)2481218
Reflectivity of Material-1.1-6.5-20-21.1-17.2
